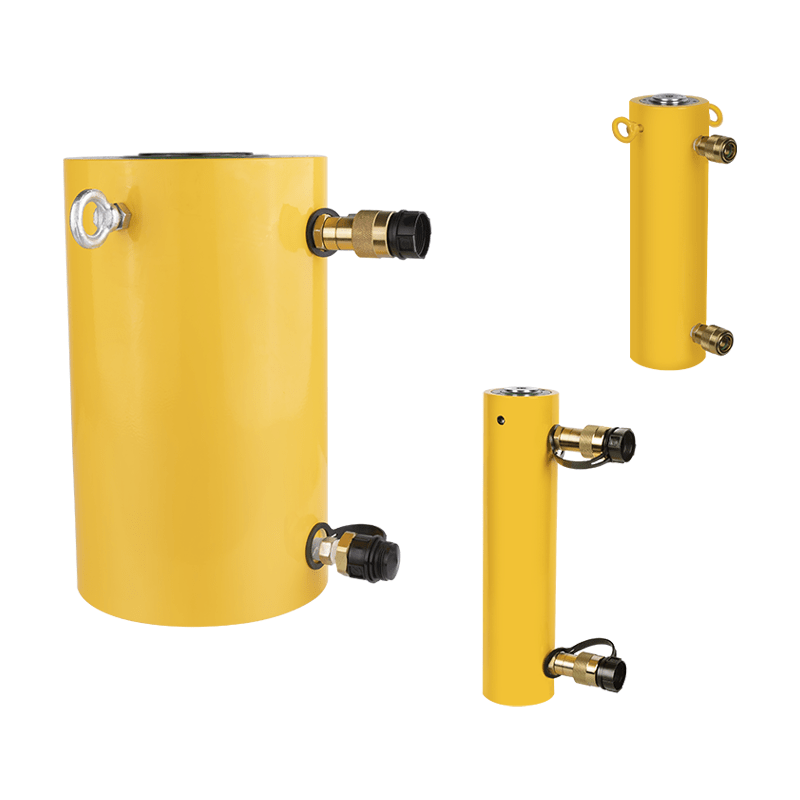

双作⽤液压千⽄顶
-
0.000.00
-
商品描述
| 型号 | 总承载力(T) @700bar | 行程(mm) | 有效面积(CM²) | 需油量(L) | 本体高底(mm) | 伸展高度(mm) | 千斤顶外径(Φmm) | 千斤顶内径(Φmm) | 活塞杆直径(Φmm) | 底部螺丝规格 | ||||
| 吨位 | 进程(KN) | 回程(KN) | 进程 | 回程 | 进程 | 回程 | ||||||||
| CLRG-504 | 50 | 496 | 227 | 100 | 70.9 | 32.4 | 0.708 | 0.324 | 294 | 344 | 127 | 95 | 70 | M10 |
| CLRG-506 | 150 | 1.063 | 0.486 | 344 | 394 | |||||||||
| CLRG-508 | 200 | 1.417 | 0.648 | 394 | 444 | |||||||||
| CLRG-1004 | 100 | 1002 | 557 | 100 | 143.1 | 79.5 | 1.431 | 0.795 | 317 | 367 | 175 | 135 | 90 | M10 |
| CLRG-1006 | 150 | 2.146 | 1.192 | 367 | 417 | |||||||||
| CLRG-1008 | 200 | 2.861 | 1.59 | 417 | 467 | |||||||||
| CLRG-1504 | 150 | 1496 | 770 | 100 | 213.7 | 110 | 2.137 | 1.099 | 272 | 322 | 215 | 165 | 115 | M12 |
| CLRG-1506 | 150 | 3.206 | 1.649 | 322 | 372 | |||||||||
| CLRG-1508 | 200 | 4.274 | 2.198 | 372 | 422 | |||||||||
| CLRG-2004 | 200 | 1984 | 982 | 100 | 283.4 | 140.3 | 2.834 | 1.403 | 322 | 372 | 232 | 190 | 135 | M12 |
| CLRG-2006 | 150 | 4.215 | 2.105 | 372 | 422 | |||||||||
| CLRG-2008 | 200 | 5.668 | 2.806 | 422 | 472 | |||||||||
| CLRG-2504 | 250 | 2540 | 760 | 100 | 362.9 | 108.5 | 3.629 | 1.085 | 367 | 417 | 276 | 215 | 180 | M12 |
| CLRG-2506 | 150 | 5.443 | 1.682 | 417 | 467 | |||||||||
| CLRG-2508 | 200 | 7.257 | 2.171 | 467 | 517 | |||||||||
| CLRG-3004 | 300 | 3165 | 967 | 100 | 452.2 | 138.2 | 4.522 | 1.382 | 385 | 435 | 296 | 240 | 200 | M16 |
| CLRG-3006 | 150 | 6.782 | 2.072 | 435 | 485 | |||||||||
| CLRG-3008 | 200 | 9.043 | 2.763 | 485 | 535 | |||||||||
| CLRG-4004 | 400 | 4006 | 1346 | 100 | 572.3 | 192.3 | 5.723 | 1.923 | 455 | 505 | 335 | 270 | 220 | M16 |
| CLRG-4006 | 150 | 8.584 | 2.885 | 505 | 555 | |||||||||
| CLRG-4008 | 200 | 11.445 | 3.847 | 555 | 605 | |||||||||
| CLRG-5004 | 500 | 5110 | 1677 | 100 | 730.2 | 239.6 | 7.302 | 2.396 | 495 | 545 | 385 | 305 | 250 | M20 |
| CLRG-5006 | 150 | 10.954 | 3.594 | 545 | 595 | |||||||||
| CLRG-5008 | 200 | 14.605 | 4.792 | 595 | 645 | |||||||||
| CLRG-6004 | 600 | 5985 | 1978 | 100 | 854.9 | 282.6 | 8.549 | 2.826 | 495 | 545 | 385 | 305 | 250 | M20 |
| CLRG-6006 | 150 | 12.823 | 4.239 | 545 | 595 | |||||||||
| CLRG-6008 | 200 | 17.098 | 5.652 | 595 | 645 | |||||||||
| CLRG-7004 | 700 | 7121 | 2175 | 100 | 1017.4 | 310.9 | 10.174 | 3.109 | 528 | 578 | 436 | 360 | 300 | M24 |
| CLRG-7006 | 150 | 15.26 | 4.663 | 578 | 628 | |||||||||
| CLRG-7008 | 200 | 20.347 | 6.217 | 628 | 678 | |||||||||
| CLRG-8004 | 800 | 8358 | 2730 | 100 | 1194 | 390.1. | 11.94 | 3.901 | 580 | 630 | 476 | 390 | 320 | M24 |
| CLRG-8006 | 150 | 17.91 | 5.852 | 630 | 680 | |||||||||
| CLRG-8008 | 200 | 23.88 | 7.803 | 680 | 730 | |||||||||
| CLRG-9004 | 900 | 9013 | 2661 | 100 | 1287.6 | 380.1 | 12.876 | 3.801 | 630 | 680 | 506 | 405 | 340 | M24 |
| CLRG-9006 | 150 | 19.314 | 5.702 | 680 | 730 | |||||||||
| CLRG-9008 | 200 | 25.752 | 7.603 | 730 | 780 | |||||||||
| CLRG-10004 | 1000 | 10160 | 3039 | 100 | 1451.5 | 434.1 | 14.515 | 4.341 | 645 | 695 | 535 | 430 | 360 | M24 |
| CLRG-10006 | 150 | 21.772 | 6.512 | 695 | 745 | |||||||||
| CLRG-10008 | 200 | 29.3 | 8.682 | 745 | 795 | |||||||||
